Datasheets for Flush-Mount Monitors
Please note:
- The datasheets show a standard configuration; you can specify variants from the following List: Variants
- If a desired data sheet is not (yet) available, please call us and we will provide it.
- Most data sheets contain a copy of the mechanical drawing of the monitor. We will send you the full-size drawing on request.

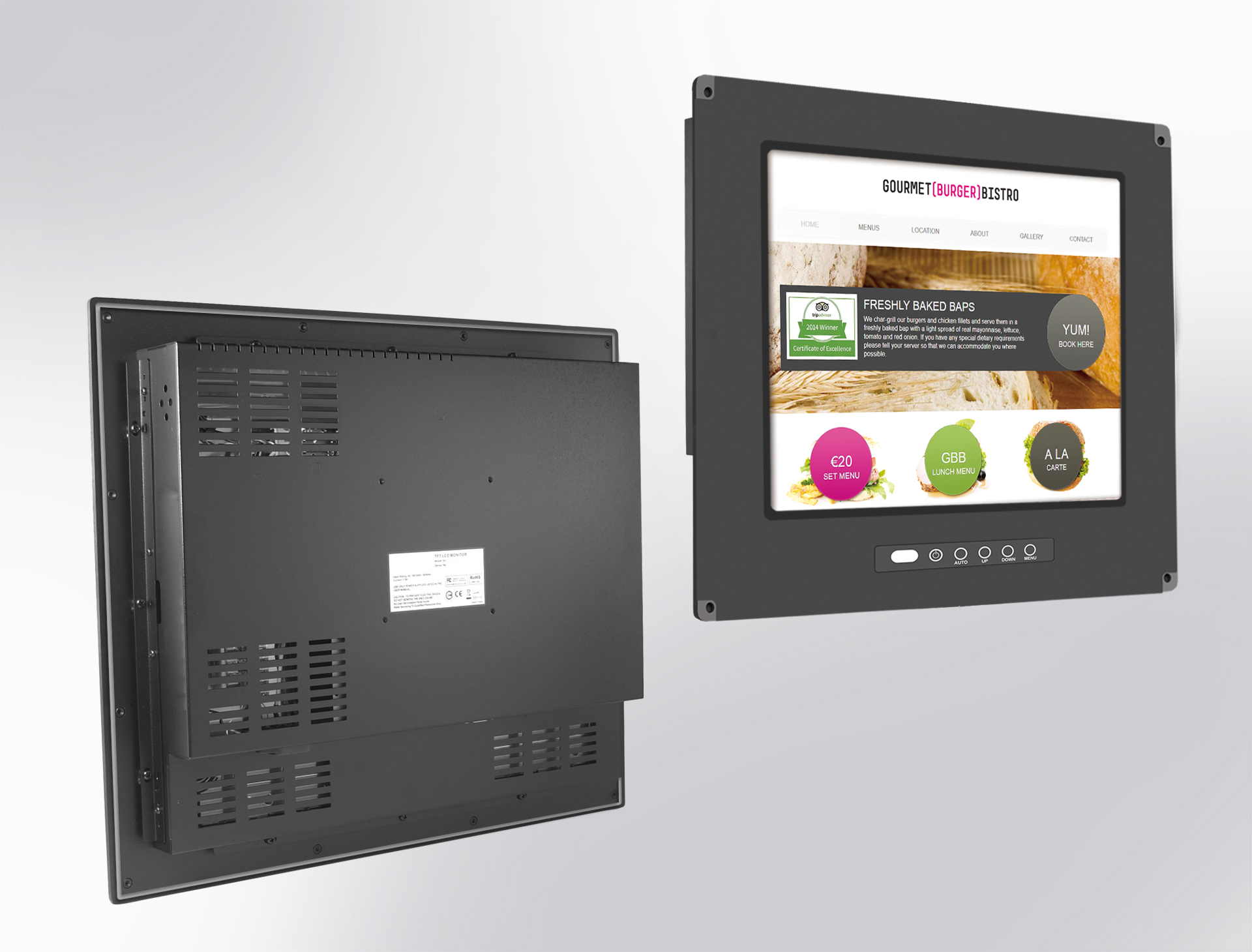

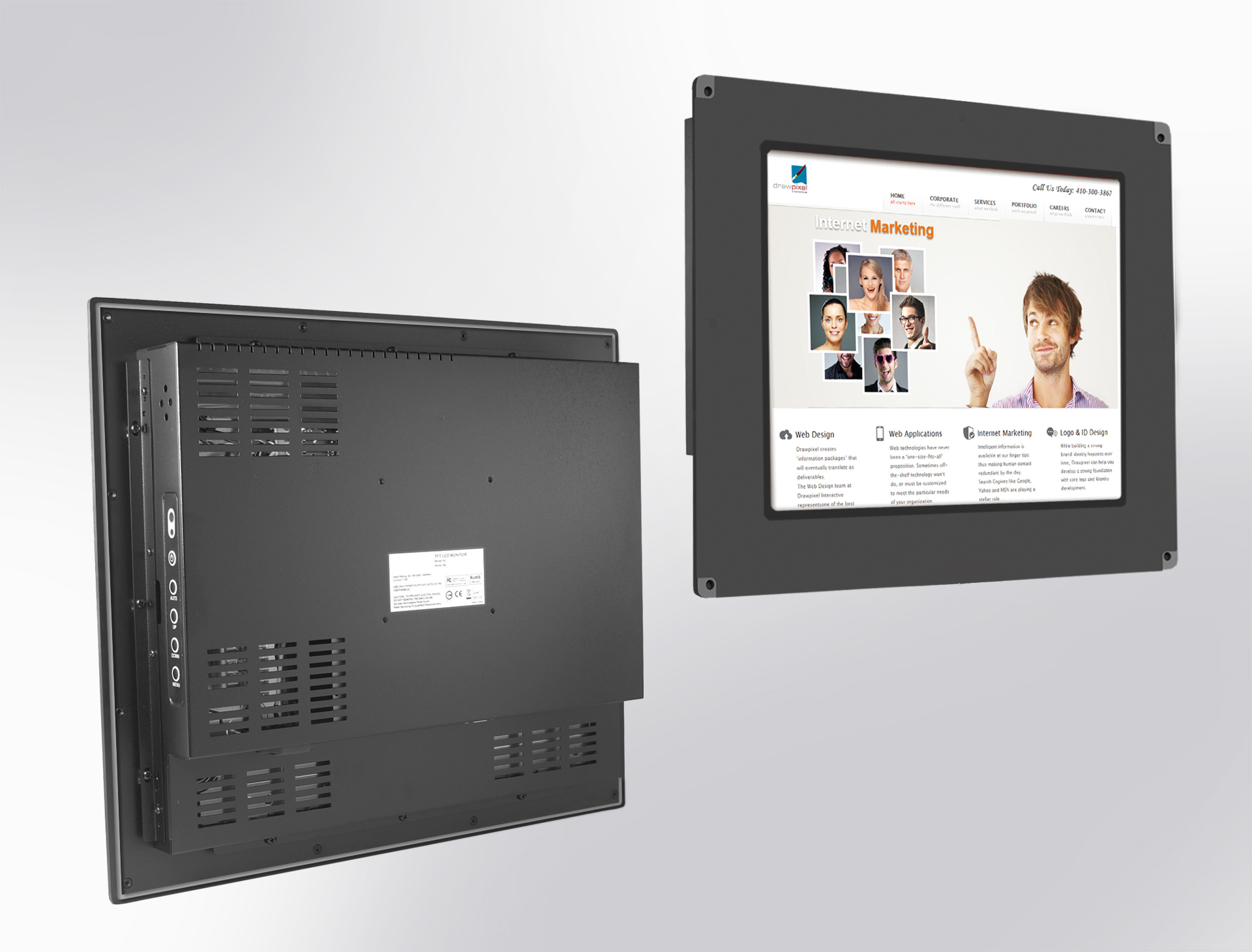

- ATTENTION: Flush-mount monitors are available with the OSD switch either at the rear (series 5 - standard) or at the front (series 3).
Aspect ratio 4:3
- FM0576 5,7" 640 x 480
- FM0656 6,5" 640 x 480
- FM0846 8,4" 800 x 600
- FM0975 9,7" 1024 x 768
- FM1045 10,4" 800 x 600
- FM1045 10,4" 1024 x 768
- FM1205 12,1" 800 x 600
- FM1205 12,1" 1024 x 768
- FM1505 15,1" 1024 x 768
- FM1705 17,1" 1280 x 1024
- FM1715 17,1" 1920 x 1920 (square)
- FM1905 19,1" 1280 x 1024
- FM2005 20,1" 1600 x 1200
- FM2135 21,3" 2048 x 1536
- FM2316 23,1" 1600 x 1200
- FM2655 26,5" 1920 x 1920 (square)
Aspect ratio 16:9 ("Wide")
- FM0706 7,1" 800 x 480
- FM0706 7,1" 1024 x 600
- FM1016 10,1" 1024 x 600
- FM1016 10,1" 1280 x 800
- FM1016 10,1" 1366 x 768
- FM1016 10,1" 1920 x 1200
- FM12W5 12,1" 1280 x 800
- FM1545 15,4" 1280 x 800
- FM1565 15,6" 1920 x 1080
- FM1735 17,3" 1920 x 1080
- FM17W5 17,0" 1440 x 900
- FM17W5 17,0" 1920 x 1200
- FM1855 18,5" 1366 x 768
- FM1855 18,5" 1920 x 1080
- FM19W5 19,0" 1440 x 900
- FM2155 21,5" 1920 x 1080
- FM2205 22,1" 1680 x 1050
- FM2385 23,8" 1920 x 1080
- FM2385 23,8" 3840 x 2160
